IV4K Series

V-mounted Camera Adapter for EFP camera

IV4K Series V-mounted camera adapter can connect Cine cameras and broadcast-level 4K shoulder-mounted camcorders to on-site production environments, perfectly compatible with Sony, Canon and ARRI. It supports up to 2 x12G-SDl video, 2 x Return, 2 x Intercom, 1 x Time Code, 1 xRS-422/485 Serial data, 1 x bi-directional Genlock, 1 Gigabit Ethernet, and 2 x Audio signals. It also provides dual-color Tally and long-distance power supply, meeting the requirements of live events such as sports events, concerts, and live studio programs.

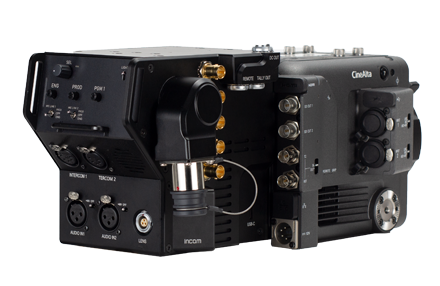

The lV4K Series can be easily installed onto the battery mount of the camera-recorders, and supply power to far end devices via SMPTE hybrid cables. It can also achieve full data control by connected camera RCP, aligning with standard broadcast-level workflows and offering broadcasters a future-proof migration.

Feature

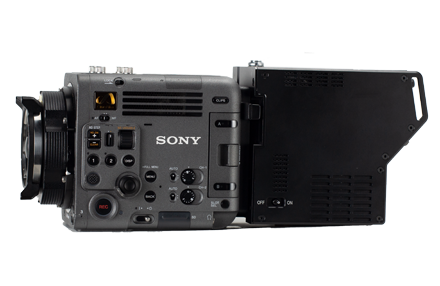

Compatible with SONY, Canon, ARRI Cine camera and Skaarhoj, Cyanview remote control panels
Standard V-mounted battery, easy installation and removal, reliable data connection and control
Supply power to remote devices up to 1 km via SMPTE Hybrid cable
Provide the same human-machine interface as broadcast studio cameras, simple and clear, easy to operate
Support Return, Sync, Gigabit Ethernet, Intercom, Time code, dual-colour Tally and 15V/5V power supplies for other add-ons
Switchable VF port can support Return video or PGM switching
The IV4K Series control unit is a compact 2RU half-rackt width chassis with four 12G-SDI outputs as standard and an optional fourchannel analogue audio de-embedded outputConvenient for system integration
Independent video channels with re-clocking and cable equalization, compatible with SMPTE ST-2082, all input/output processing passed Pathological test
