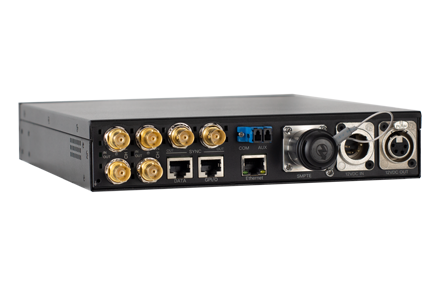

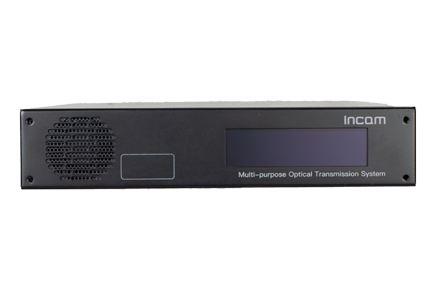

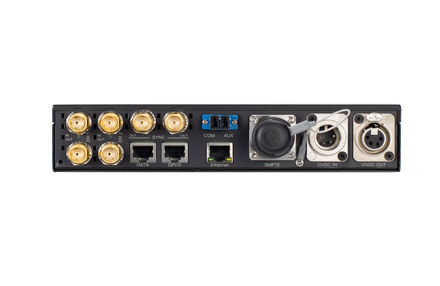

NestOptic-PTZ is a portable multi-purpose optical transmission device with small size and reliable performance. lt provides RS-422, Gigabit Ethernet, Sync and GPlO, which is perfectly suitable for signal extension in live production. NestOptic-PTZ is equipped with a variety of mounting accessories, which can be installed in different shooting environments such as tripods, walls and ceilings.
NestOptic-PTZ can be connected using either single-mode optical fiber or SMPTE hybrid cable. When using SMPTE hybrid cable, it can supply power to remote devices over 1km. NestOptic-PTZ is universally compatible with Panasonic UE150/160, Sony ILME-FR7 and BRC-AM7, and also supports other third-party optical SFP.
Feature
Technical specification
System Diagram
Ordering Information
OTP-EDW-V10-A/B Camera Side Unit (with 1-channel SDl input with loop-out option) + SFP
OTP-FXW-V02-A/B Control Side Unit (with 2-channel SDl output dual-out option)
OTP-EDW-V00-A/B Camera Side Unit (without SDl input option) + SFP
OTP-FXW-V01-A/B Control Side Unit (with 1-channel SDl output dual-out option)
*A refers to 12VDC power supply, which is compatible with Panasonic UE150, UE160 and Sony BRC-AM7.
B refers to 19VDC power supply, which is compitable with Sony ILME-FR7.
